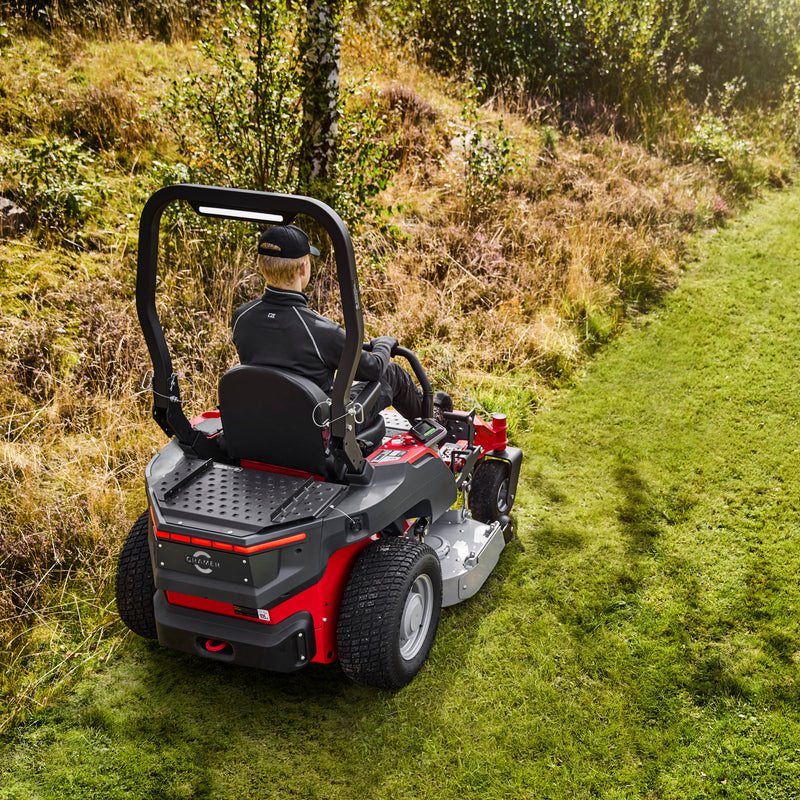

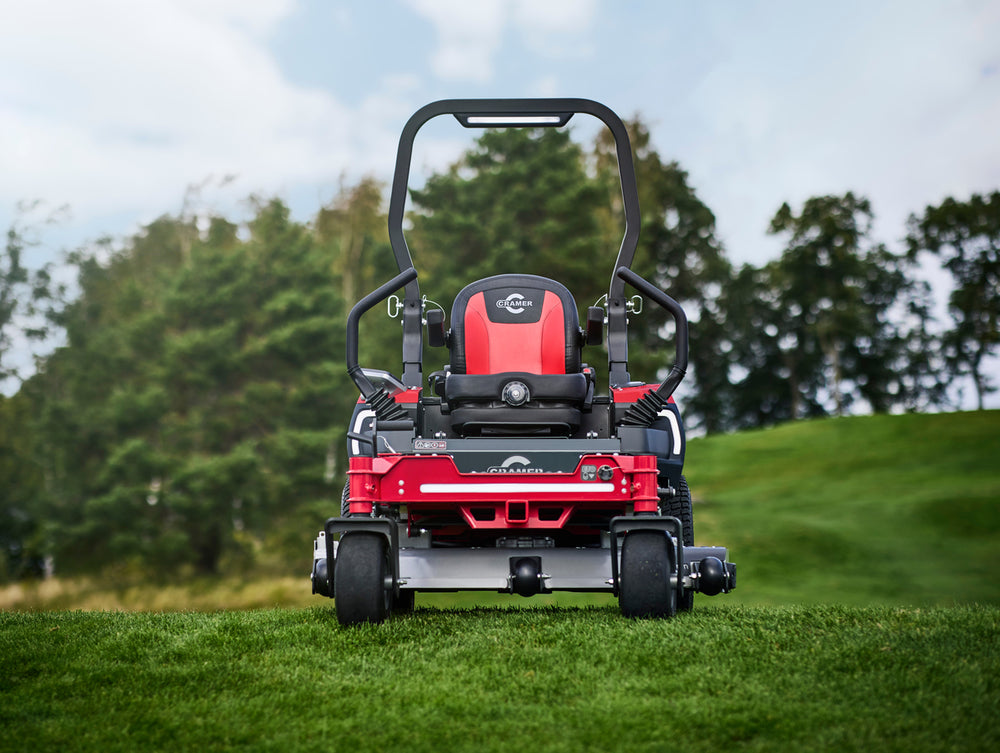

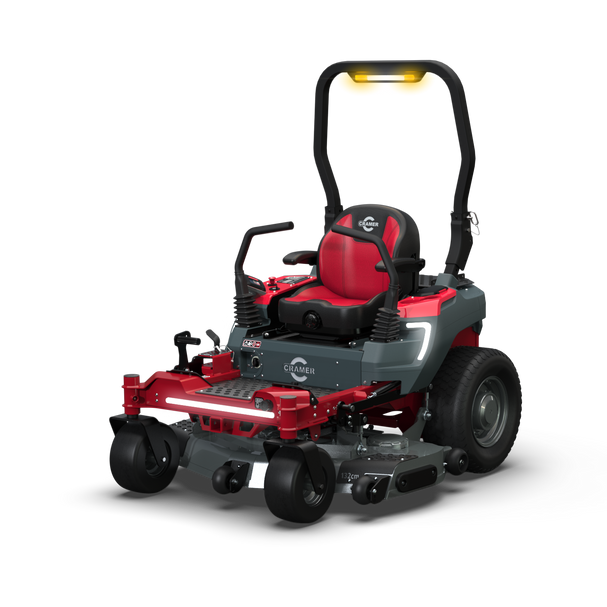

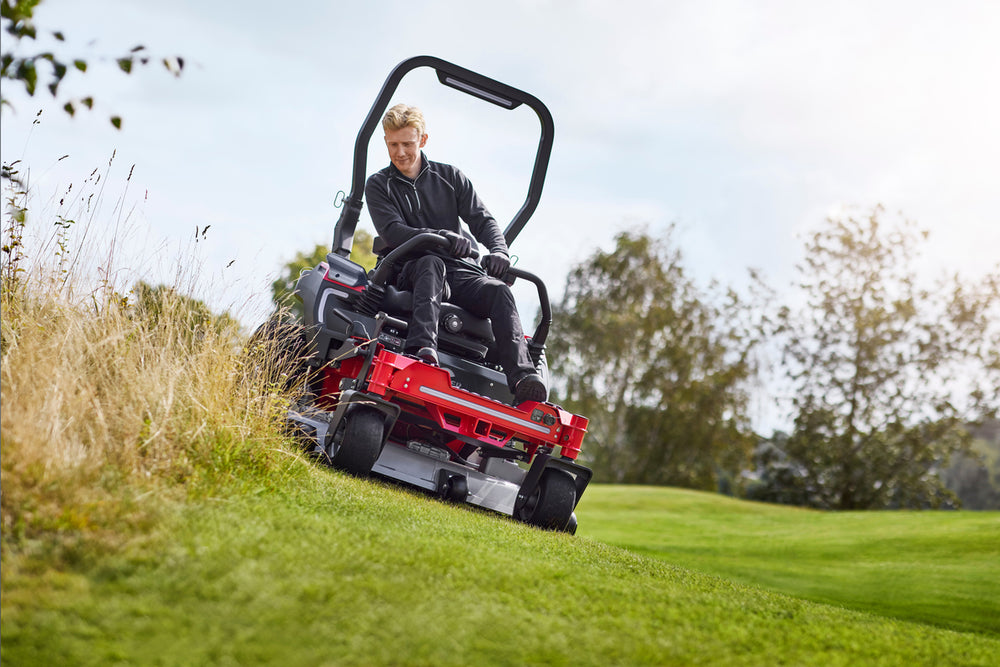

OPTIMUS™ Zero Turn Ride-On 132 cm 24 kwh
OPTIMUS™ Zero Turn Ride-On 132 cm 24 kwh

 Zero Turn Ride-On 132 cm 24 kwh

The ZTC132R is fitted with the MEGA 24K battery pack and offers the same innovative features as the ZTC152 but in a smaller deck configuration. The ZTC132R is equipped with a 132 cm wide rear discharge deck. The aerodynamically designed deck features counter rotating blades to produce the maximum air flow that disperses grass clippings to the rear of the mower. The optional high-performance mulching function ensures total versatility for different jobs.

  • Cut areas of up to 75,000 m² on a single charge
  • The MEGA 24kwh battery will fully charge overnight using the included charger
  • Built and designed to operate in rain or sun with IPX4 certification
  • Convenient LCD screen gives the operator access to adjust drive speed, blade tip speed as well as choose preferred language
  • With a battery first design, the mower has an exceptionally low centre of gravity for working on slopes of up to 20°
Find a Dealer
Find a Dealer
Technical Spec DownloadsCompare Similar

Technical Spec

  • Voltage
    Optimus 82V
  • Max Area Coverage
    up to 75.000 m²
  • Max Runtime
    up to 8 hrs
  • Battery Capacity
    24 kWh
  • Translation missing: en.tech_spec.battery_compartments
    Built-In
  • Cutting Deck Width
    132 cm
  • Cutting Desk Type
    Fabricated
  • Cutting System
    Rear-discharge/Mulching
  • Translation missing: en.tech_spec.charge_time_with_3_kw_charger
    8 hrs
  • Equivalent
    65 HP
  • Drive Motors
    2x 5 kW, Hub Motors
  • Translation missing: en.tech_spec.cutting_motors
    3x 2 kW
  • Max Slope Capacity
    20°
  • Max Drive Speed
    up to 25.6 km/h
  • Max Blade Tip Speed
    up to 3,400 RPM
  • Cutting Height
    25 - 127 mm
  • Cutting Height Adjustment
    Manual (17 positions)
  • Height Adjustment
    Manual
  • Translation missing: en.tech_spec.max_carry_weight
    110 kg (rear)
  • ETO Connector Front Rear
    Front/Rear
  • Roll Over Protection
    Yes
  • Integrated Tow Hitch
    Yes
  • Translation missing: en.tech_spec.seat
    Suspension seat
  • Translation missing: en.tech_spec.parking_brake
    Electromagnetic
  • Operating Weight
    650 kg
  • ERP
    7401586
  • EAN
    6936854138245
View product View More Specifications
OPTIMUS™ Zero Turn Ride-On 132 cm 24 kwh
Compare this product to others
Battery Capacity
Translation missing: en.tech_spec.battery_compartments
Charge Time
Translation missing: en.tech_spec.charge_time_with_3_kw_charger
Cutting Desk Type
Cutting Deck Width
Cutting Height
Cutting Height Adjustment
Cutting Height Span
Translation missing: en.tech_spec.cutting_motors
Cutting System
Drive Motors
EAN
Equivalent
ERP
ETO Connector Front Rear
Integrated Tow Hitch
Translation missing: en.tech_spec.led_360_warning_lights
Max Area Coverage
Max Blade Tip Speed
Translation missing: en.tech_spec.max_carry_weight
Max Drive Speed
Max Runtime
Max Slope Capacity
Operating Weight
Translation missing: en.tech_spec.parking_brake
Roll Over Protection
Translation missing: en.tech_spec.seat
Voltage
View more
OPTIMUS™ Zero Turn Ride-On 132 cm 24 kwh
OPTIMUS™ Zero Turn Ride-On 132 cm 24 kwh
Battery Capacity
24 kWh
Translation missing: en.tech_spec.battery_compartments
Built-In
Charge Time
8 hrs
Translation missing: en.tech_spec.charge_time_with_3_kw_charger
8 hrs
Cutting Desk Type
Fabricated
Cutting Deck Width
132 cm
Cutting Height
25 - 127 mm
Cutting Height Adjustment
Manual (17 positions)
Cutting Height Span
25 - 127 mm
Translation missing: en.tech_spec.cutting_motors
3x 2 kW
Cutting System
Rear-discharge/Mulching
Drive Motors
2x 5 kW, Hub Motors
EAN
6936854138245
Equivalent
65 HP
ERP
7401586
ETO Connector Front Rear
Front/Rear
Integrated Tow Hitch
Yes
Translation missing: en.tech_spec.led_360_warning_lights
360° LED Light / Warning Light
Max Area Coverage
up to 75.000 m²
Max Blade Tip Speed
up to 3,400 RPM
Translation missing: en.tech_spec.max_carry_weight
110 kg (rear)
Max Drive Speed
up to 25.6 km/h
Max Runtime
up to 8 hrs
Max Slope Capacity
20°
Operating Weight
650 kg
Translation missing: en.tech_spec.parking_brake
Electromagnetic
Roll Over Protection
Yes
Translation missing: en.tech_spec.seat
Suspension seat
Voltage
Optimus 82V
OPTIMUS™ Zero Turn Ride-On 182 cm 36 kWh R
OPTIMUS™ Zero Turn Ride-On 182 cm 36 kWh R
Battery Capacity
36 kWh
Translation missing: en.tech_spec.battery_compartments
Built-In
Charge Time
12 hrs
Translation missing: en.tech_spec.charge_time_with_3_kw_charger
12 hrs
Cutting Desk Type
Fabricated
Cutting Deck Width
182 cm
Cutting Height
25 - 127 mm
Cutting Height Adjustment
Electric (17 positions)
Cutting Height Span
25 - 127 mm
Translation missing: en.tech_spec.cutting_motors
3x 2 kW
Cutting System
Rear-discharge/Mulching
Drive Motors
2x 6.5 kW, Hub Motors
EAN
6936854138269
Equivalent
70 HP
ERP
7401786
ETO Connector Front Rear
Front/Rear
Integrated Tow Hitch
Yes
Translation missing: en.tech_spec.led_360_warning_lights
360° LED Light / Warning Light
Max Area Coverage
up to 100.000 m²
Max Blade Tip Speed
up to 3,200 RPM
Translation missing: en.tech_spec.max_carry_weight
110 kg (rear)
Max Drive Speed
up to 22.5 km/h
Max Runtime
up to 8 hrs
Max Slope Capacity
20°
Operating Weight
900 kg
Translation missing: en.tech_spec.parking_brake
Electromagnetic
Roll Over Protection
Yes
Translation missing: en.tech_spec.seat
Suspension seat
Voltage
Optimus 82V
FULL DETAILS
OPTIMUS™ Zero Turn Ride-On 152 cm 24 kwh R
OPTIMUS™ Zero Turn Ride-On 152 cm 24 kwh R
Battery Capacity
24 kWh
Translation missing: en.tech_spec.battery_compartments
Built-In
Charge Time
8 hrs
Translation missing: en.tech_spec.charge_time_with_3_kw_charger
8 hrs
Cutting Desk Type
Fabricated
Cutting Deck Width
152 cm
Cutting Height
25 - 127 mm
Cutting Height Adjustment
Manual (17 positions)
Cutting Height Span
25 - 127 mm
Translation missing: en.tech_spec.cutting_motors
3x 2 kW
Cutting System
Rear-discharge/Mulching
Drive Motors
2x 5 kW, Hub Motors
EAN
6936854138252
Equivalent
65 HP
ERP
7401686
ETO Connector Front Rear
Front/Rear
Integrated Tow Hitch
Yes
Translation missing: en.tech_spec.led_360_warning_lights
360° LED Light / Warning Light
Max Area Coverage
up to 85.000 m²
Max Blade Tip Speed
up to 3,200 RPM
Translation missing: en.tech_spec.max_carry_weight
110 kg (rear)
Max Drive Speed
up to 25.6 km/h
Max Runtime
up to 8 hrs
Max Slope Capacity
20°
Operating Weight
720 kg
Translation missing: en.tech_spec.parking_brake
Electromagnetic
Roll Over Protection
Yes
Translation missing: en.tech_spec.seat
Suspension seat
Voltage
Optimus 82V
FULL DETAILS
OPTIMUS™ Zero Turn Ride-On 152 cm 24 kwh
OPTIMUS™ Zero Turn Ride-On 152 cm 24 kwh
Battery Capacity
24 kWh
Translation missing: en.tech_spec.battery_compartments
Built-In
Charge Time
8 hrs
Translation missing: en.tech_spec.charge_time_with_3_kw_charger
8 hrs
Cutting Desk Type
Fabricated
Cutting Deck Width
152 cm
Cutting Height
25 - 127 mm
Cutting Height Adjustment
Manual (17 positions)
Cutting Height Span
25 - 127 mm
Translation missing: en.tech_spec.cutting_motors
3x 1.8 kW
Cutting System
Side-discharge/Mulching
Drive Motors
2x 5 kW, Hub Motors
EAN
6952909093475
Equivalent
65 HP
ERP
7401086
ETO Connector Front Rear
Front/Rear
Integrated Tow Hitch
Yes
Translation missing: en.tech_spec.led_360_warning_lights
360° LED Light / Warning Light
Max Area Coverage
up to 85.000 m²
Max Blade Tip Speed
up to 3,200 RPM
Translation missing: en.tech_spec.max_carry_weight
110 kg (rear)
Max Drive Speed
up to 25.6 km/h
Max Runtime
up to 8 hrs
Max Slope Capacity
20°
Operating Weight
720 kg
Translation missing: en.tech_spec.parking_brake
Electromagnetic
Roll Over Protection
Yes
Translation missing: en.tech_spec.seat
Suspension seat
Voltage
Optimus 82V
FULL DETAILS
OPTIMUS™ Zero Turn Ride-On 122 cm 24 kWh
OPTIMUS™ Zero Turn Ride-On 122 cm 24 kWh
Battery Capacity
24 kWh
Translation missing: en.tech_spec.battery_compartments
Built-In
Charge Time
8 hrs
Translation missing: en.tech_spec.charge_time_with_3_kw_charger
8 hrs
Cutting Desk Type
Fabricated
Cutting Deck Width
122 cm
Cutting Height
25 - 127 mm
Cutting Height Adjustment
Manual (17 positions)
Cutting Height Span
25 - 127 mm
Translation missing: en.tech_spec.cutting_motors
3x 2 kW
Cutting System
Rear-discharge/Mulching
Drive Motors
2x 5 kW, Hub Motors
EAN
6936854138238
Equivalent
65 HP
ERP
7401486
ETO Connector Front Rear
Front/Rear
Integrated Tow Hitch
Yes
Translation missing: en.tech_spec.led_360_warning_lights
360° LED Light / Warning Light
Max Area Coverage
up to 65.000 m²
Max Blade Tip Speed
up to 3,400 RPM
Translation missing: en.tech_spec.max_carry_weight
110 kg (rear)
Max Drive Speed
up to 25.6 km/h
Max Runtime
up to 8 hrs
Max Slope Capacity
20°
Operating Weight
600 kg
Translation missing: en.tech_spec.parking_brake
Electromagnetic
Roll Over Protection
Yes
Translation missing: en.tech_spec.seat
Suspension seat
Voltage
Optimus 82V
FULL DETAILS
OPTIMUS™ Zero Turn Stand-On 92 cm
OPTIMUS™ Zero Turn Stand-On 92 cm
Battery Capacity
8 kWh
Translation missing: en.tech_spec.battery_compartments
Built-In
Charge Time
3 hrs
Translation missing: en.tech_spec.charge_time_with_3_kw_charger
3 hrs
Cutting Desk Type
Fabricated
Cutting Deck Width
92 cm
Cutting Height
25 - 127 mm
Cutting Height Adjustment
Manual (17 positions)
Cutting Height Span
25 - 127 mm
Translation missing: en.tech_spec.cutting_motors
2x 1.8 kW
Cutting System
Side-discharge/Mulching
Drive Motors
2x 2.2 kW, Hub Motors
EAN
6952909093451
Equivalent
27 HP
ERP
7400886
ETO Connector Front Rear
Front
Integrated Tow Hitch
Yes
Translation missing: en.tech_spec.led_360_warning_lights
Front LED Light / Warning Light
Max Area Coverage
up to 28.000 m²
Max Blade Tip Speed
up to 3,600 RPM
Translation missing: en.tech_spec.max_carry_weight
110 kg (rear)
Max Drive Speed
up to 16 km/h
Max Runtime
up to 4.5 hrs
Max Slope Capacity
20°
Operating Weight
430 kg
Translation missing: en.tech_spec.parking_brake
Electromagnetic
Roll Over Protection
No
Translation missing: en.tech_spec.seat
Suspension seat
Voltage
Optimus 82V
FULL DETAILS

Find a dealer

What people say about us...

View all Testimonials
Federico, Mantova Ambiente
Mantova Ambiente, with 200–500 employees, manages Mantua's public green areas, enhancing urban landscapes through sustainable practices.
Closing Quotation Icon Closing Quotation Icon
Mobility for us means working on large areas without needing to recharge the batteries until the end of the day.
Play Video Icon Pause Video Icon
Federico, Mantova Ambiente
Mantova Ambiente, with 200–500 employees, manages Mantua's public green areas, enhancing urban landscapes through sustainable practices.
Closing Quotation Icon Closing Quotation Icon
Mobility for us means working on large areas without needing to recharge the batteries until the end of the day.
Federico, Mantova Ambiente
Mantova Ambiente, with 200–500 employees, manages Mantua's public green areas, enhancing urban landscapes through sustainable practices.
Closing Quotation Icon Closing Quotation Icon
Mobility for us means working on large areas without needing to recharge the batteries until the end of the day.
Play Video Icon Pause Video Icon
Federico, Mantova Ambiente
Mantova Ambiente, with 200–500 employees, manages Mantua's public green areas, enhancing urban landscapes through sustainable practices.
Closing Quotation Icon Closing Quotation Icon
Mobility for us means working on large areas without needing to recharge the batteries until the end of the day.
